Constant Torque Clamp, 1-1/16" to 2"
SKU 72374
Original price
$6.36
-
Original price
$6.36
Original price
$6.36
$6.36
-
$6.36
Current price
$6.36
Availability:
in stock, ready to be shipped
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

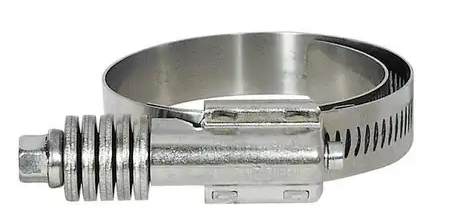

Constant Torque Clamp, 1-1/16" to 2"
Constant Torque Clamp
- Eliminate Hose Connection Leaks With A Revolutionary New Clamp That Reacts To Changes In Hose Systems By Actually Increasing Or Decreasing Its Own Diameter As The System Expands Or Contracts.
- Solid Stainless Steel Clamp Assembly.
- Eliminates Coolant Loss Due To Cold Flow Leakage, And Greatly Minimizes Clamp Maintenance.
- Automatically Adjusts To Operational Or Environmental Temperatures.
- Used By Most Oems.
- Used On All Radiator, Silicone Heater, And Air Charged After Cooler Hose Connections.
- Each Clamp Contains A Visual Torque Check To Ensure Proper Torque.
- Band Width: 9/16"
- Size: 24
- Cross Reference: Ct9424
- Clamp Diameter: Minimum: 1-1/16, Maximum: 2"
- Maximum Installation Torque: 30-70 Inch Lb
- Screw Tip Extension "A": 3/16
- Clamp Is Installed Correctly When The Screw Tip "A" ("Torque Check") Is Extended Beyond The Housing, And The Belleville Washer Stacks Are Nearly Collapsed Flat.
Band Width
9/16 in.
Shipping Weight
0.72 lb.
Clamp Diameter Range
1-1/16 in. to 2 in.
System of Measurement
Fractional
Cross Reference
CT9424
Torque Range
30 to 70 in.-lb.
Item
Constant Torque Clamp
