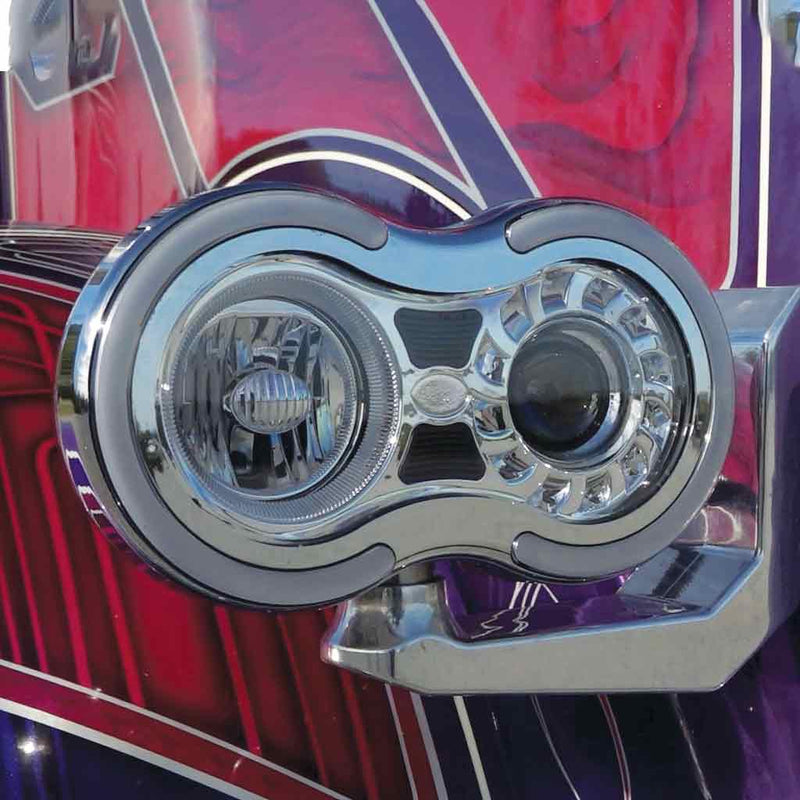

TRUX Retro Series LED Projector Headlight Assembly (Passenger Side) - TLED-H105
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

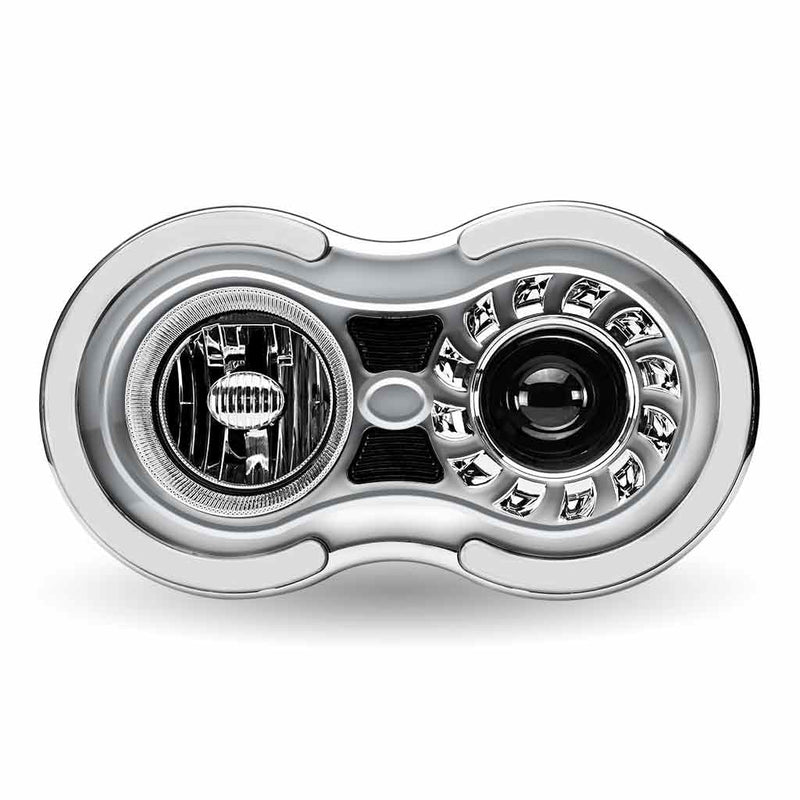

Retro Series LED Projector Headlight Assembly with Glow Position & Marker LED Accents
- Chrome
- Passenger Side
- Replaces Dual 5.75″ Headlight Configurations

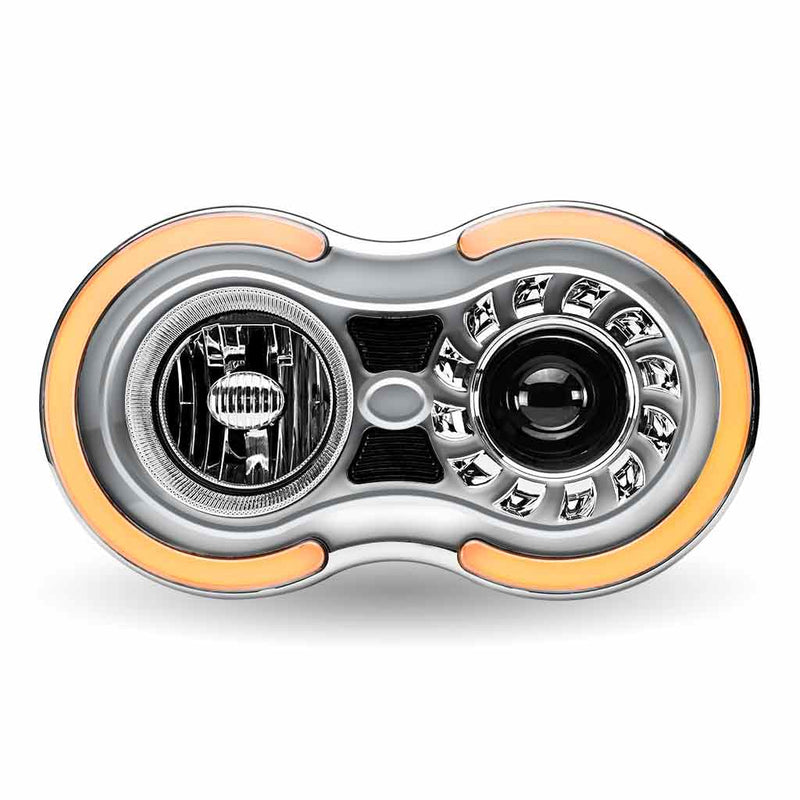

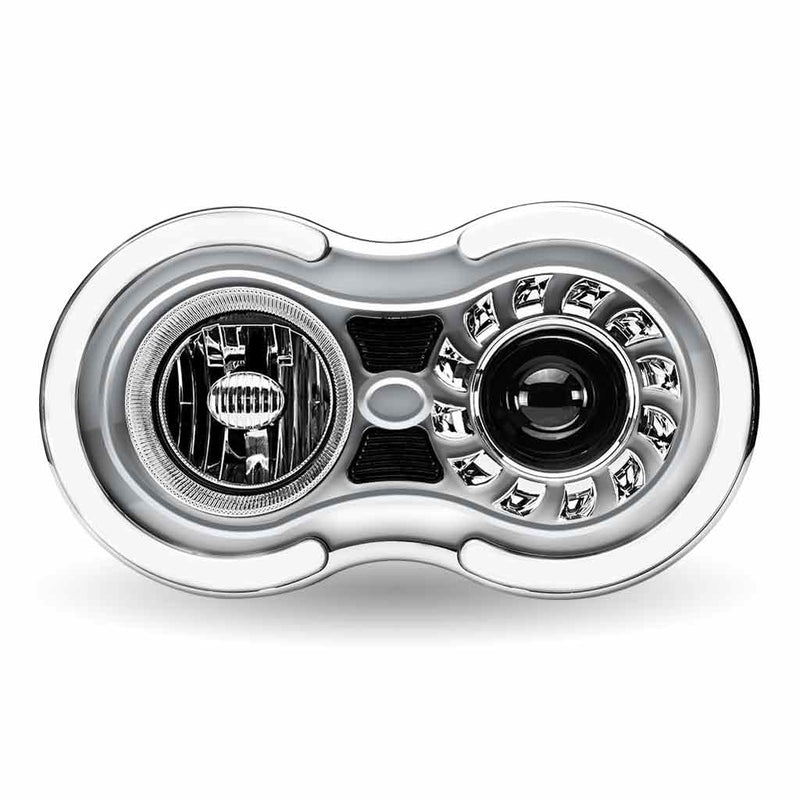

- Dual Function White Glow Position (DRL Auxiliary) & Amber Marker LED Accents
- Projector Technology for a Wider Beam
- Includes 304 Stainless Housing & All Hardware
- 3 Year Warranty
| Style | Peterbilt, Round |
|---|---|
| Size | Double Round 5.75" |
| Sold | Individually |
| Compliance | DOT/SAE | FMVSS-108 | CMVSS-108 |
| Bulb Type | LED Projector |
| Function 1 | Combination High & Low Beam with Glow Position (DRL Auxiliary) |
| Function 2 | Turn & Marker Accents |
| LED Power | Low: 14 Watts | High: 19.2 Watts |
| Raw Lumens | Low: 1800 Lumens | High: 2700 Lumens |
| Effective Lumens | Low: 630 Lumens | High: 900 Lumens |
| Operating Voltage | 9-30 Volts (DRL Compatible) |
| Current Draw @ 12 Volts | Low: 1.1 Amps | High: 1.5 Amps |
| Interior Color | Chrome |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Color Temperature | 6800K |
| Housing Material | Polypropylene | 304 Stainless (Housing Bucket) |
