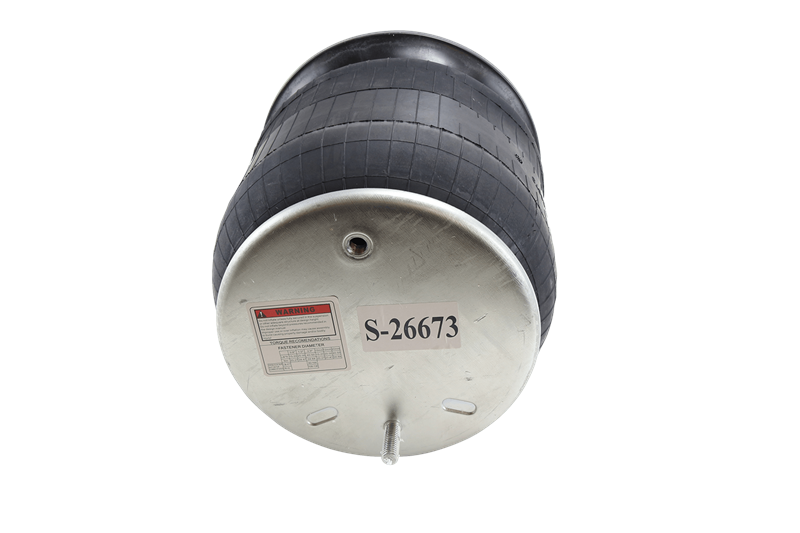

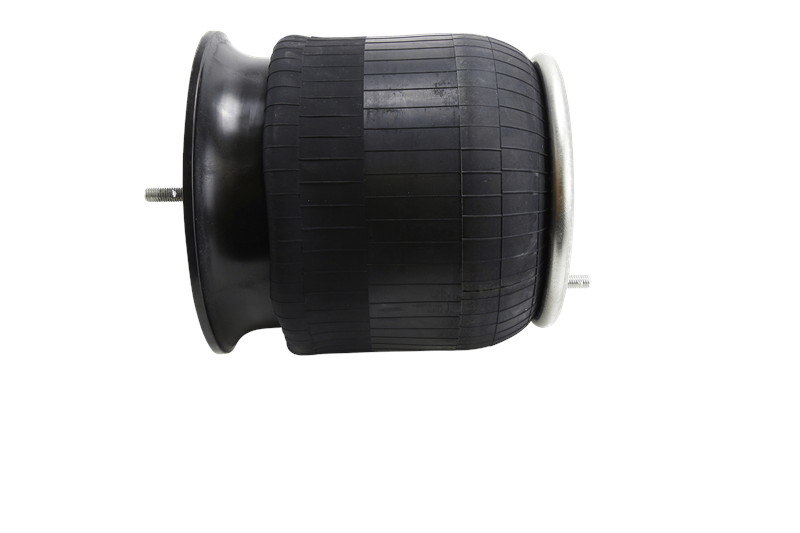

Air Spring

Min. Height 8.3
Max. Height 23
Max. Diameter. 12.6
Load (Lbs) @80 PSI 6290
Load (Lbs) @100 PSI 7860
Natural Freq. (CPM) 70
Design Height (In) 12.5
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 6.20
Bottom Plate Hole/Stud Qty 1
Bottom Plate Dia. (C) 10.63
Bottom Plate C to C Dia. (D) 3.23
Type: Rolling Lobe

Multiple Freightliner Applications

Replaces Part Numbers:

W01-358-9759

16-19769-000
