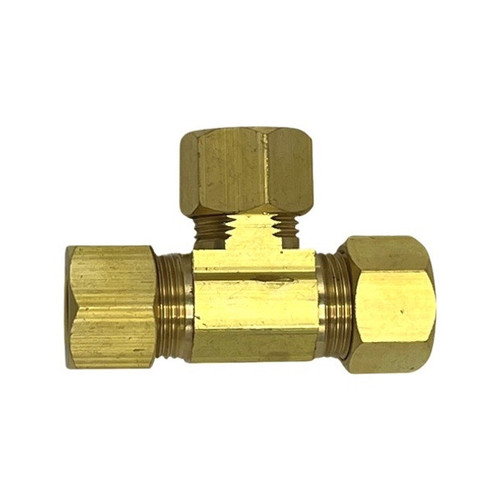

TEE 3/8X1/4
Fitting Thread Size
7/16-24
Compression Nut Torque Value
12 - 17 ft. lbs. lb.
Grade
CA360
Connection Type
Male
Material
Brass
DOT Approved
Yes
Meets Standards
SAE and DOT FMVSS 571.106
DOT Compression Fittings Type
Tees
Fitting Connection (A) Style
Compression
Pipe Thread
1/4 in.
Fitting Connection (A) Thread Size
17/32-24
Pressure Connection Cross
1472-06-06-04
Fitting Connection (A) Tube Size
3/8 in.
Shape
Branch Tee
Fitting Connection (B) Gender
Male
Shipping Weight
0.82 lb.
Fitting Connection (B) Pipe Size
1/4 in.
System of Measurement
Fractional
Fitting Connection (B) Style
NPTF Pipe
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Connection (B) Thread Size
1/4-18
Tube Outside Diameter
3/8 x 3/8 in.
Fitting Connection (C) Style
Compression
Type
Male
Fitting Connection (C) Thread Size
17/32-24
Vibration Resistance
Fair
Fitting Connection (C) Tube Size
3/8 in.
Weatherhead Cross
1472X6
Fitting Material
Brass
Working Pressure
Up to 150 psi
Fitting Style
Male Branch Tee
- Typical Applications:
- Air brakes, instrumentation, air controls, air bags, and air seats.
- Exceeds DOT pressure requirements for air brake systems.
- For use with SAE J844 type A or B air brake tubing.
- Not lead free.
- It is recommended to applied thread sealant to all pipe threads.
