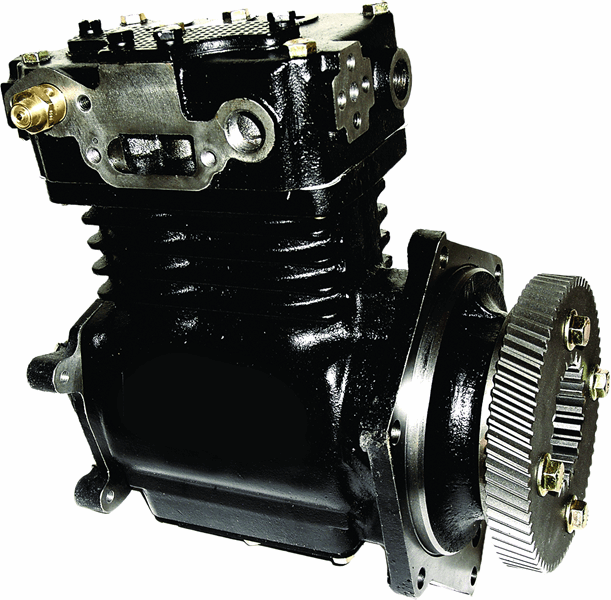

Newstar NS750 Air Compressor
-Replaces OEM Detroit #R23522122
-Direct replacement for Haldex 5004188X
Replacement for Bendix® TF750, Upgraded Version of TF550
Components are 100% Interchangeable W/ OEM
New Outright
No Core Charges
Air Inlet/Outlet: Top/Left
Cooling: Water/Air
Includes 69 Tooth Drive Gear
Includes Safety Valve
2 Cylinders
Displacement at 1250 RPM: 16.5 CFM
Max RPM: 2400
Approx. HP Req. at 1250 RPM at 120 PSIG: 3.2 HP
Max Inlet Air Temp: 250ºF
Thru-Drive Capacity: 100Ft/Lb
Reference Numbers:
- Industry 118-2798, 118-2806, 131-6679, 131-6680, 132-9813, 132-9814, 133-7032, 143-9185, 164-7564, 215-8055, OR-3845, OR-4740, OR-8253, OR-8340, & OR-8341
- Bendix 109816, 109824, 109860, 109861, 109863, 5001533, 5001788, 5002652, 5003229, 5003236, 5007466, 800256, 109864, 5001534, 5001789, 5002713, 5003230, 5005419, 5007467, 800292, 5001522, 5001773, 5002032, 5002984, 5003234, 5005478, 65683, 800724, 5001523, 5001771, 5002023, 5003228, 5003235, 5007465, & 65684
- Midland 109869K
- Newstar S-17326
- Volvo BW800256 & BW800292
